| Steam BoilersCVS ECO

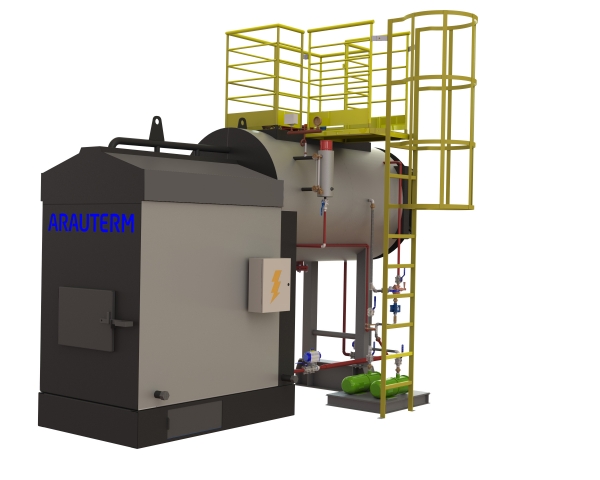

ECO Saturated Steam Boiler

• Combustibles
  Firewood in Logs
• Applications
  Industries in general
  Laundries
  Hospitals
  Refrigerators
  Dairy products

General Features:
• Type: Cylindrical body with tubular smoke with two gas passes.
• Fuel: Firewood (logs).
• Furnace design:
• Water-tube furnace with inclined tubular grates.
• Large combustion chamber.
• Innovative design that minimizes embers falling into the ash pan and maximizes combustion efficiency.
• Low pollutant emissions (CO and MP) in compliance with environmental standards.
• PMTP: 10.0
• Models: 800 to 5,000

Technical Specifications:
• Construction:
• Compact and robust.
• Furnace factory-fitted with pre-installed and interconnected accessories.
• Modular system that facilitates assembly at the installation site.
• Comes with a platform with guardrail and sailor-type ladder that meets safety standards.
• Assembly and Operation:
• Installation on the ground floor.
• Control panel pre-installed at the factory.
• Simple and compact interconnection of ducts and chimneys.
• Maintenance and Cleaning:
• Fully opening rear door for access to the pipes.
• Metal ash pan for collecting ash, located under the furnace.

Emissions Treatment System (Optional):
• Multicyclone Filter (MCA)
• Air saver (ECO-AR)
